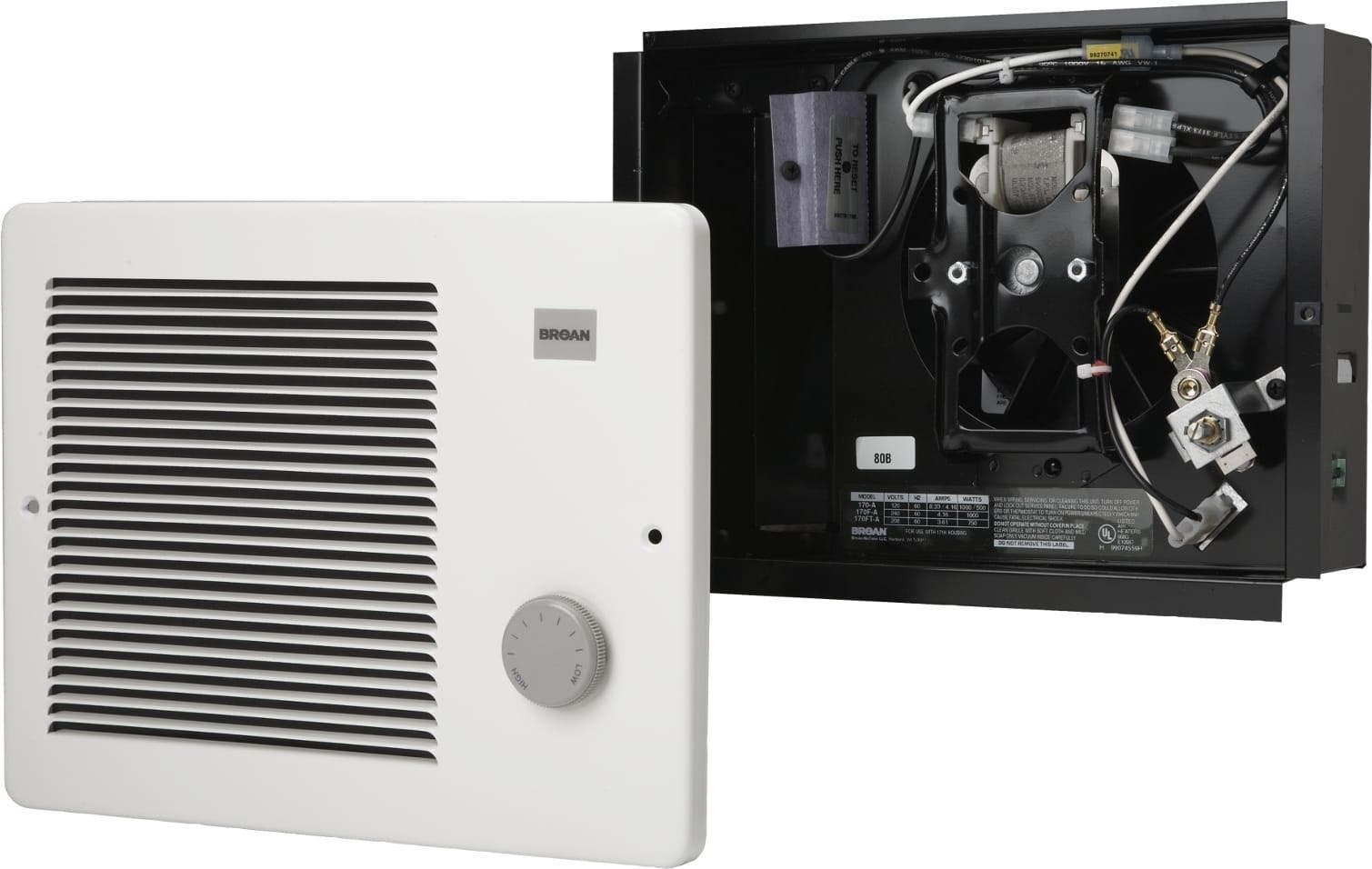

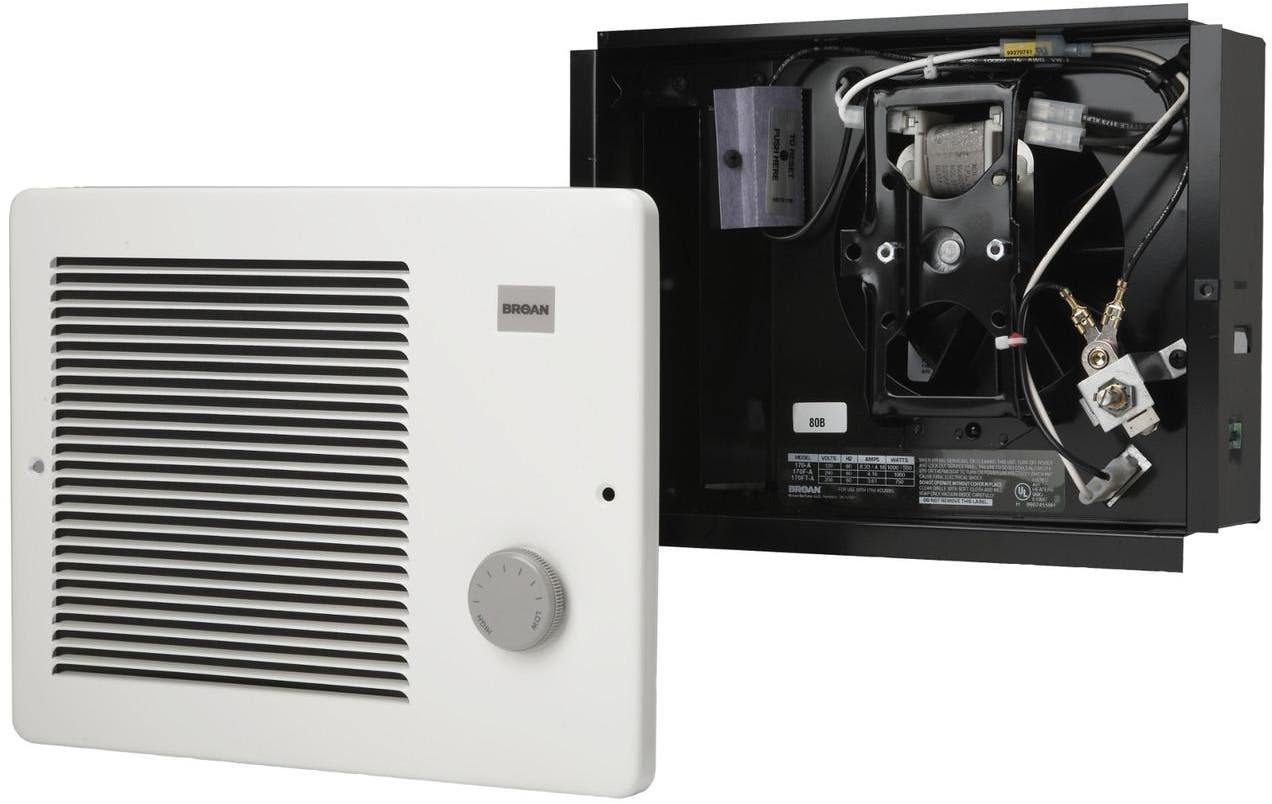

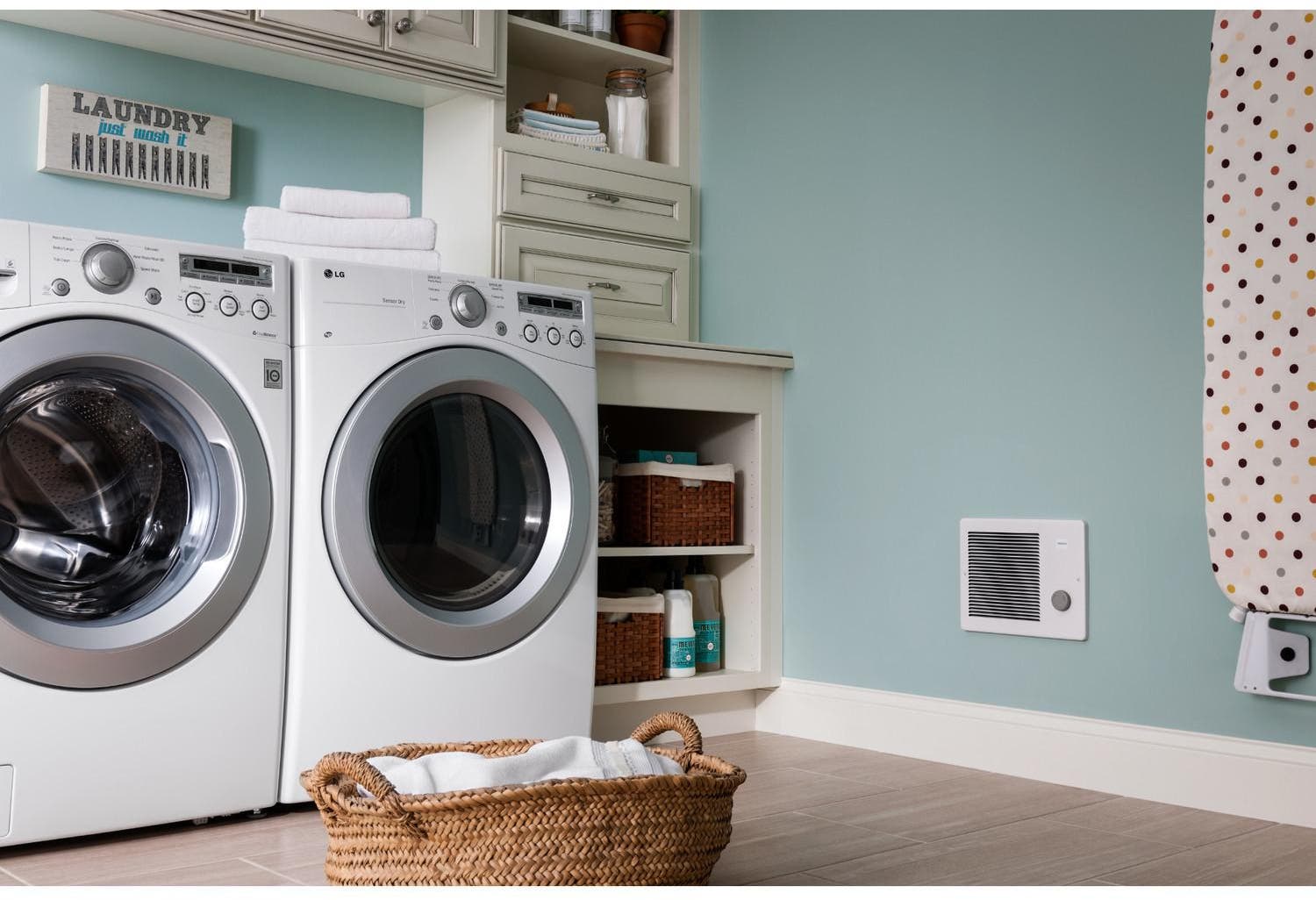

Broan 170 13 Inch Built In Wall Heater with 1000 Watts: White
Broan 170
Features
• 1,000-watt heater at 120 volts can be converted to produce 500 watts at 120 VAC, 750 watts at 208 VAC or 1,000 watts at 240 VAC
• Built-in, adjustable thermostat automatically maintains desired temperature and features a color-coordinated knob
• Factory wired
• Lubricated motor helps provide years of trouble-free operation
• Front-mounted design
• UL listed
• Built-in, adjustable thermostat automatically maintains desired temperature and features a color-coordinated knob
• Factory wired
• Lubricated motor helps provide years of trouble-free operation
• Front-mounted design
• UL listed

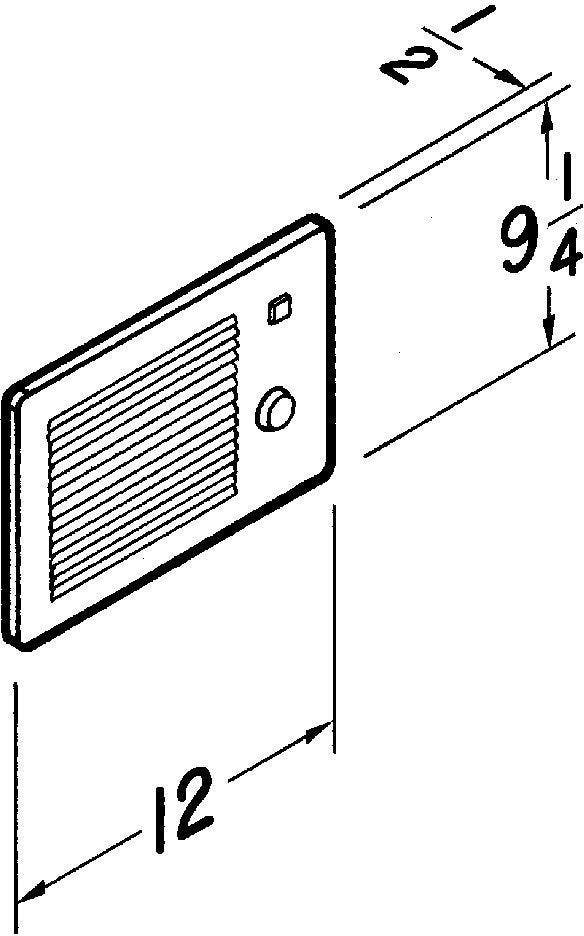

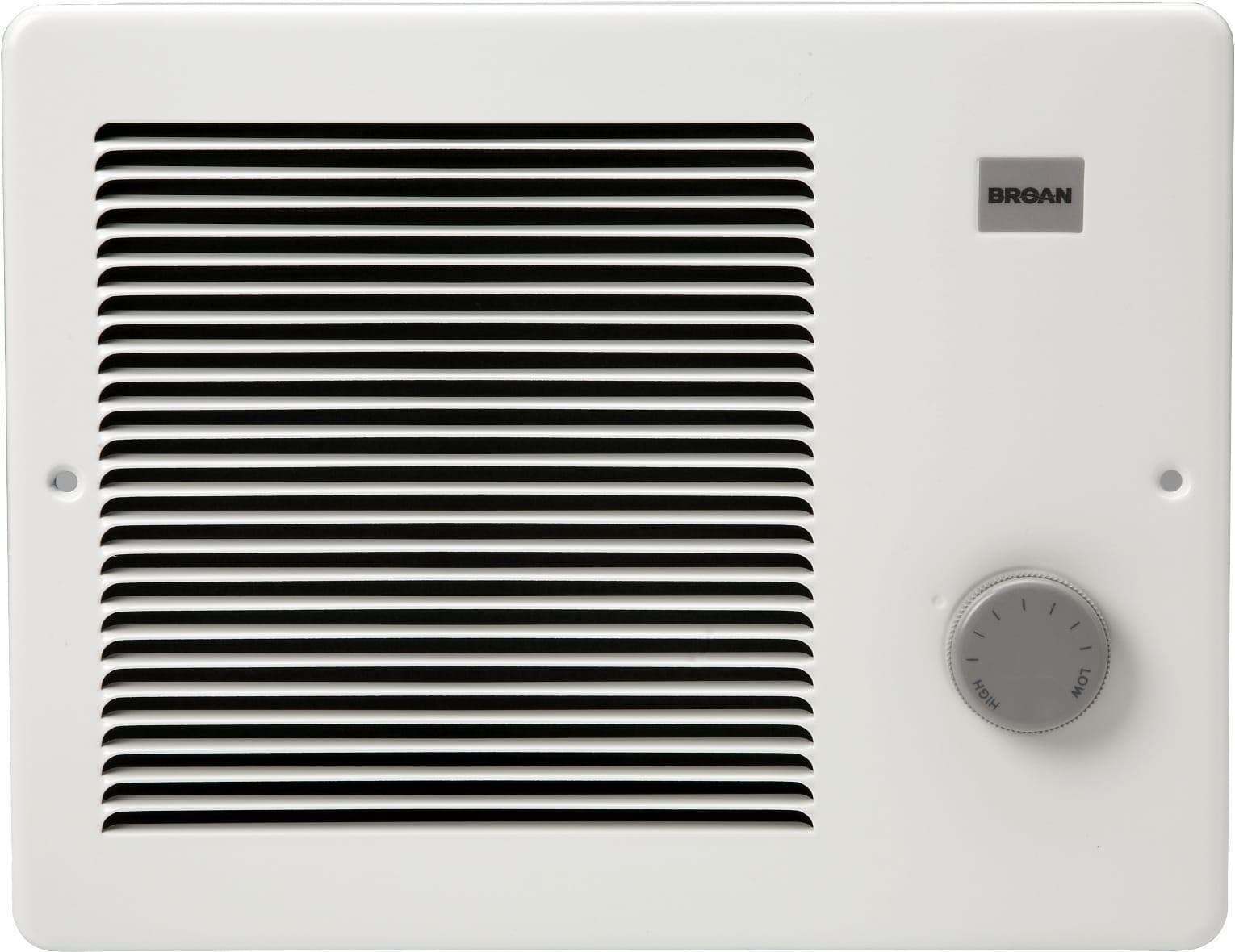

Grille
• Designer-styled, one-piece construction with rounded corners
• White, baked enamel finish
• 20-gauge, with downflow louvers
• Front-mounted thermostat
• Color-coordinated mounting screws and thermostat knob
• White, baked enamel finish
• 20-gauge, with downflow louvers
• Front-mounted thermostat
• Color-coordinated mounting screws and thermostat knob

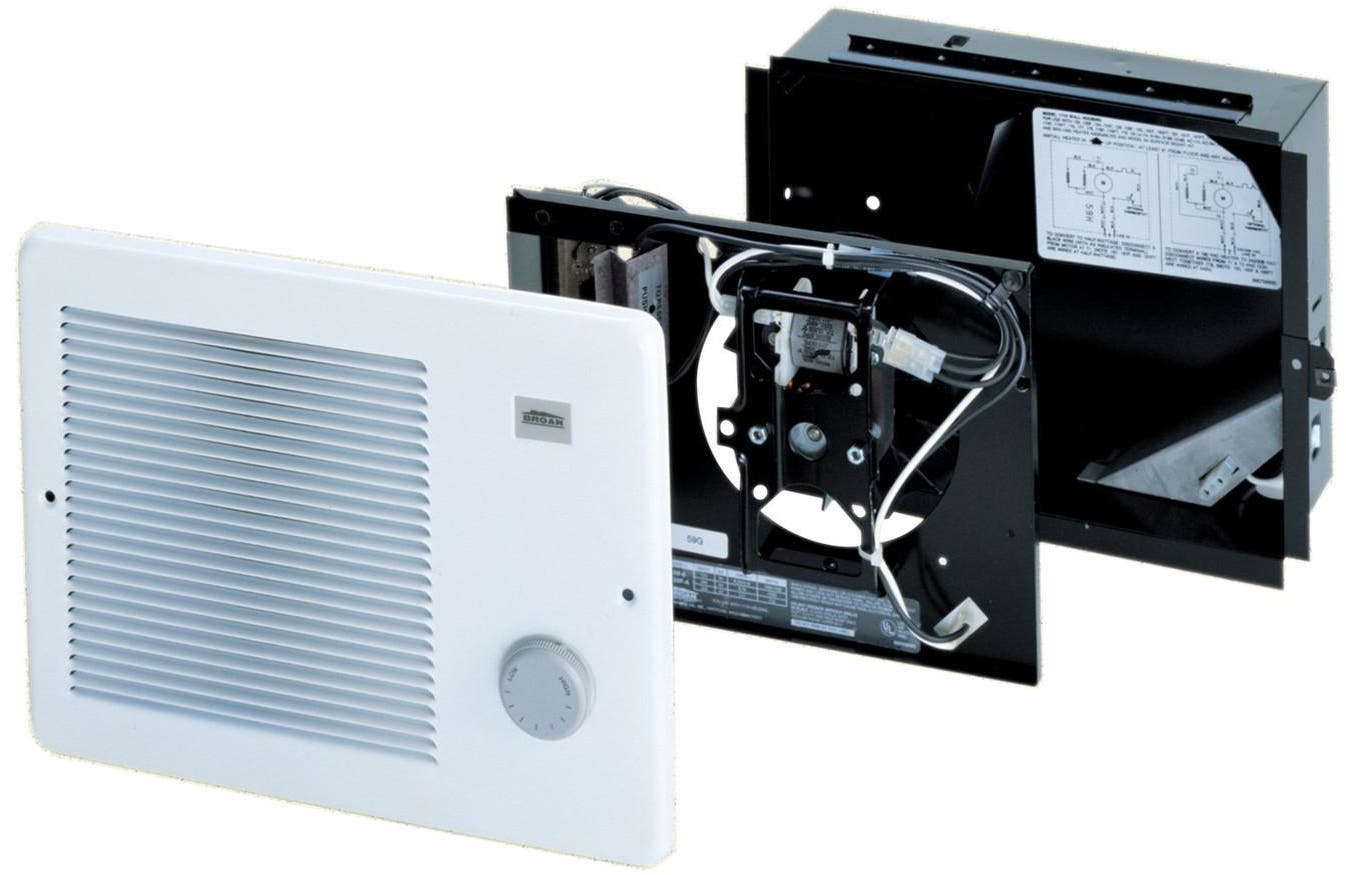

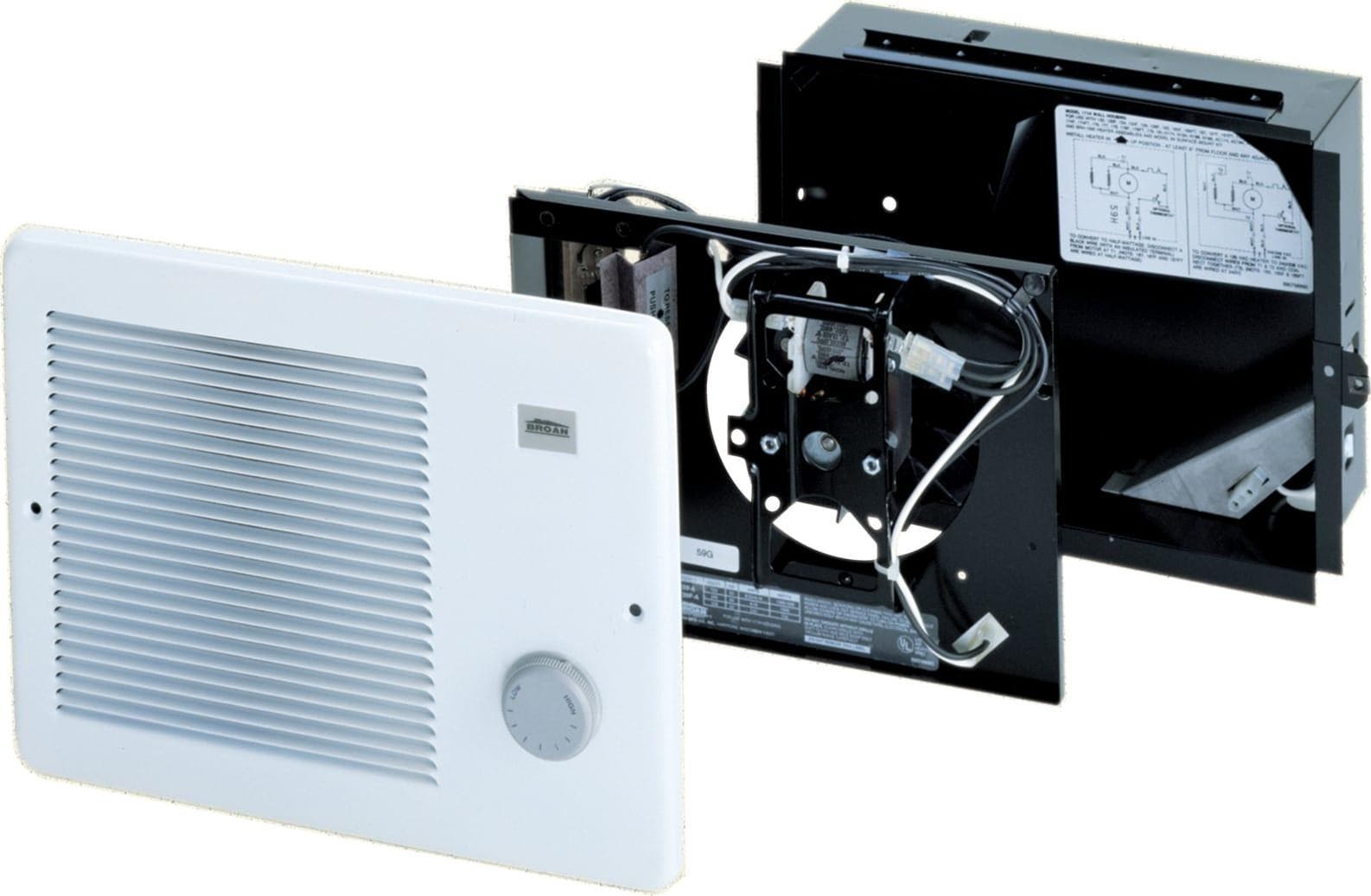

Heater Assembly:
• Nickel-chrome resistance alloy heating element
• Mica insulated, zig-zag element configuration
• Snap-action, bi-metallic thermostat
• 120 VAC units can be converted to operate on 240 VAC
• Wattage convertible (except 165F)
• Manual reset thermal overload protector
• Permanently lubricated motor
• High-efficiency blower wheel
• Removable from housing for cleaning or servicing
• Mica insulated, zig-zag element configuration
• Snap-action, bi-metallic thermostat
• 120 VAC units can be converted to operate on 240 VAC
• Wattage convertible (except 165F)
• Manual reset thermal overload protector
• Permanently lubricated motor
• High-efficiency blower wheel
• Removable from housing for cleaning or servicing

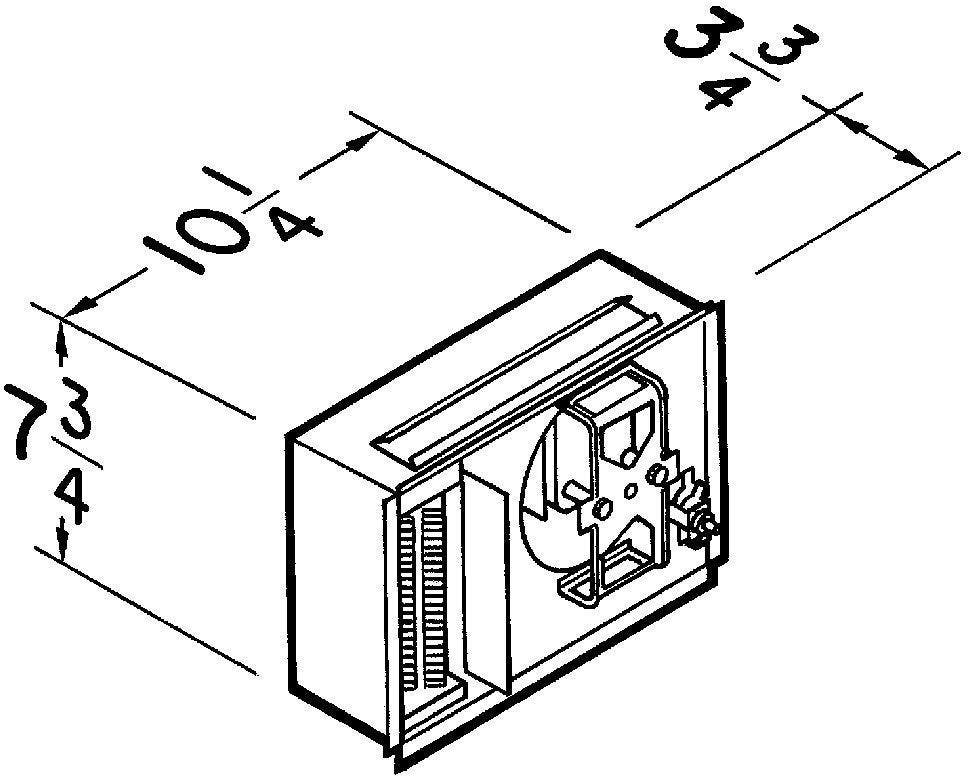

Housing
• 24-gauge steel finished with black expoxy paint
• Removable wiring cover - connect wiring away from tight corners
• Mounts directly to wall studs
• Can be recess or surface-mounted (surface mounting requires Model 84 kit)
• Includes housing mask to prevent construction damage to roughed-in heater
• Removable wiring cover - connect wiring away from tight corners
• Mounts directly to wall studs
• Can be recess or surface-mounted (surface mounting requires Model 84 kit)
• Includes housing mask to prevent construction damage to roughed-in heater
Typical Specification
• Unit shall have steel housing finished with black, epoxy paint
• It will be recessed (surface) - mounted
• Heater to deliver 500, (750), (1000), (1500), (2000) watts of fan-forced heat at "black" temperatures. It must be wattageconvertible or voltage-selectable. Heater shall include a thermal overload protector with manual reset
• Grille will be White in color and be of 20-gauge, one-piece construction with no sharp edges. Unit to be controlled with front-mount thermostat, (Model 86W - Line-Voltage Thermostat), (Model 59V, 59W-60 Minute Timer), (Model 61V, 61W- 15-Minute Timer)
• Heater shall be U.L. Listed
• It will be recessed (surface) - mounted
• Heater to deliver 500, (750), (1000), (1500), (2000) watts of fan-forced heat at "black" temperatures. It must be wattageconvertible or voltage-selectable. Heater shall include a thermal overload protector with manual reset
• Grille will be White in color and be of 20-gauge, one-piece construction with no sharp edges. Unit to be controlled with front-mount thermostat, (Model 86W - Line-Voltage Thermostat), (Model 59V, 59W-60 Minute Timer), (Model 61V, 61W- 15-Minute Timer)
• Heater shall be U.L. Listed
