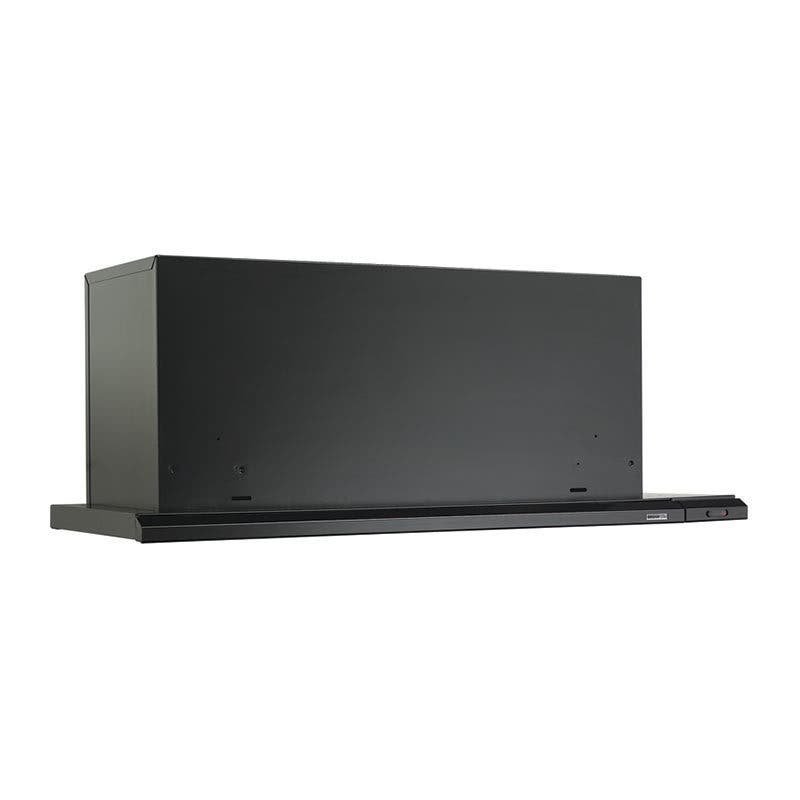

Broan 15302330 Inch Under Cabinet Range Hood with Slide Control: 30 Inches/Black
Broan 153023
43 Reviews
Price:$661.99

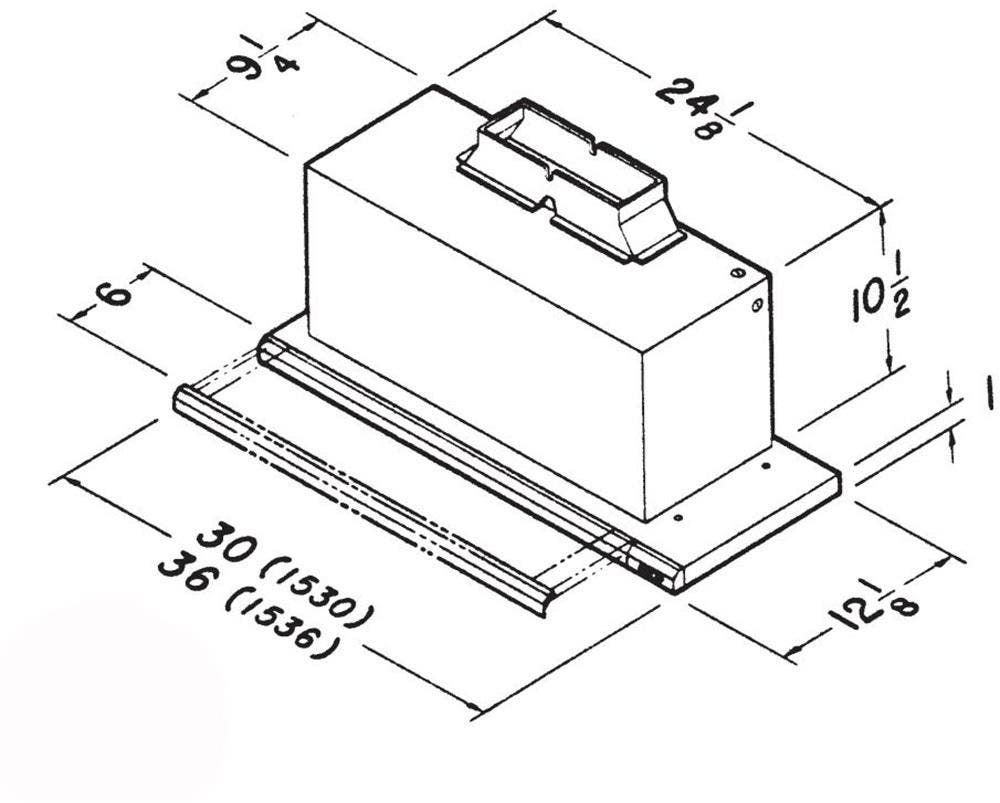

Wall Mount:Yes
Depth (in):12 1/8
Height (in):10 1/2
Width (in):30
Ducted:Yes
Broan 153023 Features
Features
• Easy to use slide control automatically recalls last setting used
• Optional (Sold Seperately), Optional (Sold Separately), Optional (Sold Separately), Optional (Sold Separately)
• Ducted vertically through 3-1/4 x 10 ductwork; Damper/duct connector included
• Foam filter (included) is washable for easy maintenance
• 24 in. fluorescent light with prismatic glass lens provides bright, even cooktop lighting (bulb not included)

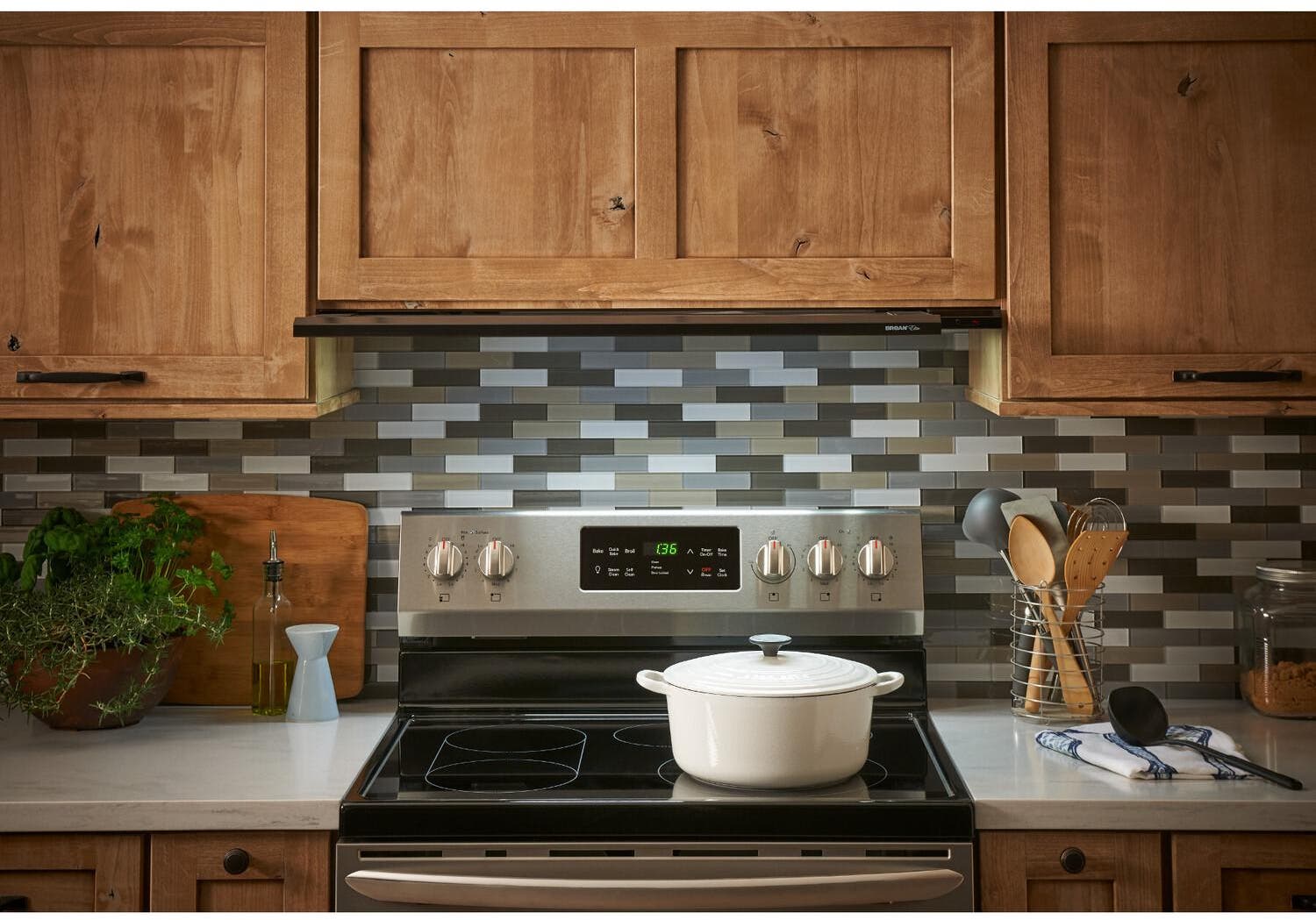

• Mounts into a full sized cabinet above the cooktop with only a slim, sliding glass drawer visible
• UL Listed & HVI-2100 Certified for your safety and protection
• High efficiency dual centrifugal blower with resilient anti-vibration motor mounts
• Blower turns ON when drawer is partially pulled Out OFF when closed

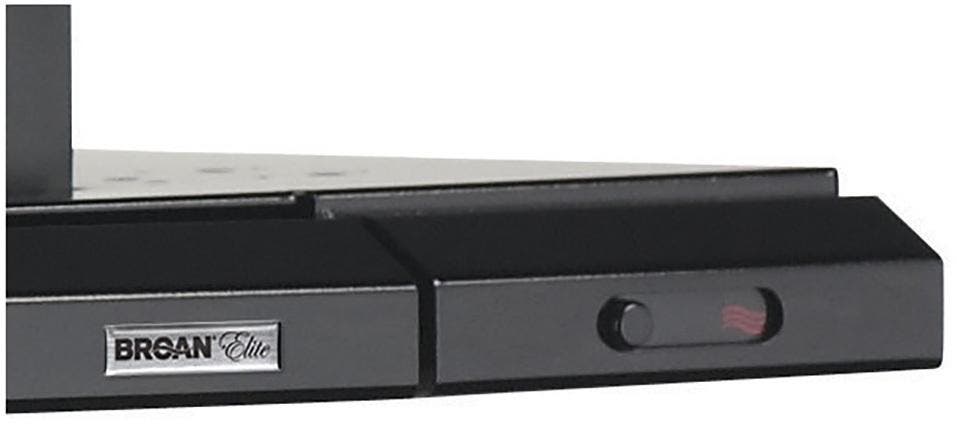

• Front-mounted solid state infinite speed control with memory
• Heat Sentry Automatically turns blower ON to HIGH speed when excess heat is detected
• Bright, economical 24" fluorescent light (F20T12 tube not included)
• Prismatic glass light lens removes easily for cleaning

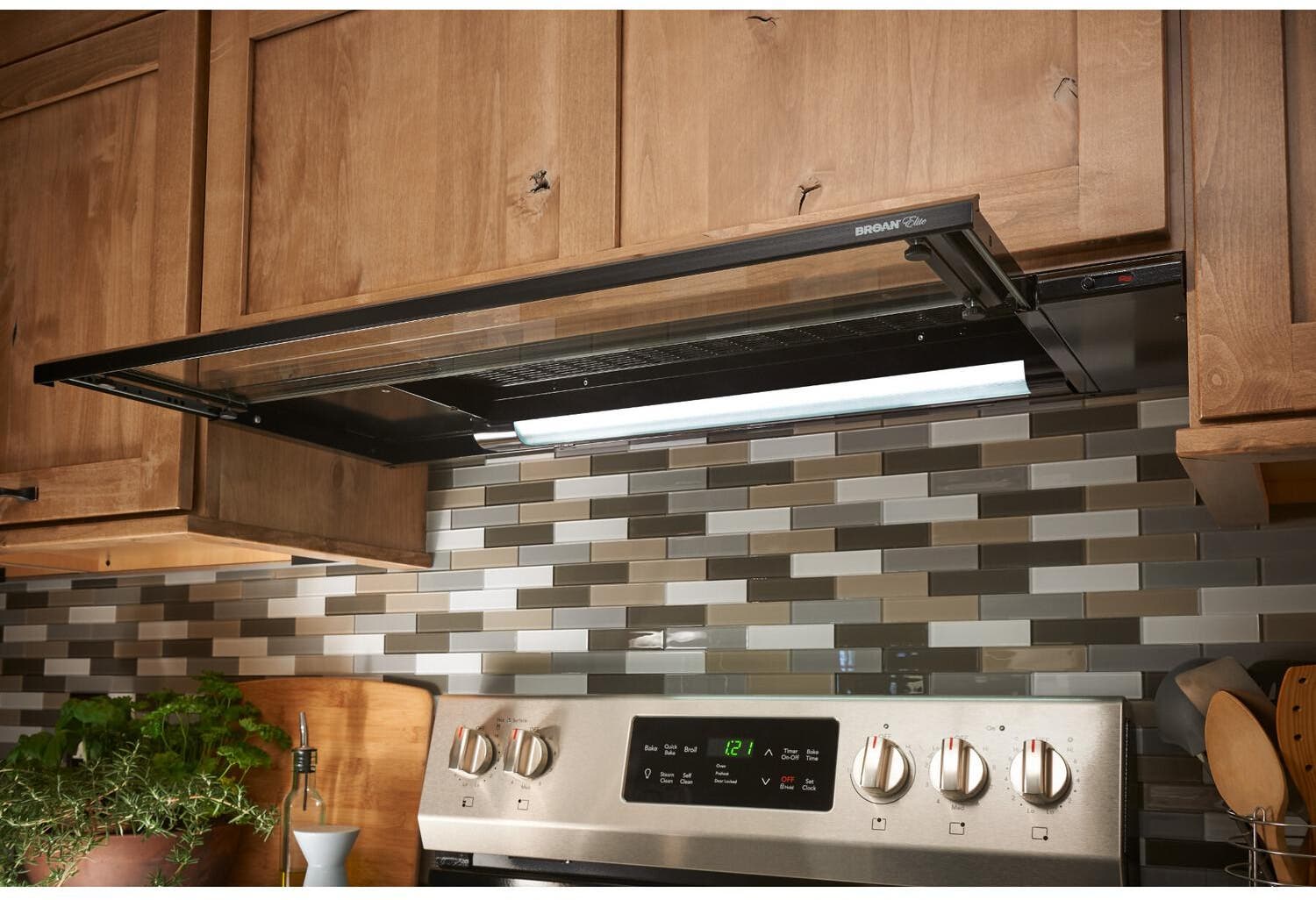

• Light turns ON when drawer is pulled out slightly OFF when closed
• Drawer handle permanently bonded to tempered glass
• Drawer glides in and out smoothly and precisely - removes for cleaning
• Washable foam filter
• Installs in standard 30" or 36" wide, flush or recessed bottom-styled cabinets
• Compact blower housing - permits use of cabinet shelf space
• Includes damper/duct connector
• Optional (Sold Seperately), Optional (Sold Separately), Optional (Sold Separately), Optional (Sold Separately)
• Ducted vertically through 3-1/4 x 10 ductwork; Damper/duct connector included
• Foam filter (included) is washable for easy maintenance
• 24 in. fluorescent light with prismatic glass lens provides bright, even cooktop lighting (bulb not included)
• Mounts into a full sized cabinet above the cooktop with only a slim, sliding glass drawer visible
• UL Listed & HVI-2100 Certified for your safety and protection
• High efficiency dual centrifugal blower with resilient anti-vibration motor mounts
• Blower turns ON when drawer is partially pulled Out OFF when closed
• Front-mounted solid state infinite speed control with memory
• Heat Sentry Automatically turns blower ON to HIGH speed when excess heat is detected
• Bright, economical 24" fluorescent light (F20T12 tube not included)
• Prismatic glass light lens removes easily for cleaning
• Light turns ON when drawer is pulled out slightly OFF when closed
• Drawer handle permanently bonded to tempered glass
• Drawer glides in and out smoothly and precisely - removes for cleaning
• Washable foam filter
• Installs in standard 30" or 36" wide, flush or recessed bottom-styled cabinets
• Compact blower housing - permits use of cabinet shelf space
• Includes damper/duct connector
Typical Specification
• Hood to contain a quiet efficient centrifugal blower with automatic start-up at high temperatures. It shall be ducted vertically through 3¼" x 10" ductwork.Blower and fluorescent light shall be turned ON and OFF using a sliding, tempered glass drawer. An infinite speed control, with memory, shall be provided to adjust blower speed
• Air delivery shall be no less than 300 CFM and sound level no greater than 4.5 Sones. All air and sound ratings shall be certified by HVI
• Air delivery shall be no less than 300 CFM and sound level no greater than 4.5 Sones. All air and sound ratings shall be certified by HVI
Broan 153023 Reviews
5 Star
40%
4 Star
21%
3 Star
5%
2 Star
12%
1 Star
23%
61%of respondents would recommend this to a friend
By :Bill435
From:Olympia WA
Submitted : 9/4/2022
Reviewed at: Broan
Verified Buyer
I installed this downdraft hood myself, so got to see the construction details. Seems a good quality build. We like the variable speed blower controls.
The description of the model we purchased clearly states "In-line blower sold separately". There is another model that does include a blower, so be sure you are purchasing the model you need. Our home already had an installed blower and duct-work from a previous installation. The Broan model we purchased worked perfectly with the existing blower.
By :J Nelson
From:Nebraska
Submitted : 12/17/2021
Reviewed at: Broan
Verified Buyer
Replaced another brand. Fit in the same opening, had to do a little venting work but went well.
By :xpmeza
From:san diego CA
Submitted : 1/1/2021
Reviewed at: Broan
I don't have an exit from the kitchen to the exterior, how can I deal with the fumes?
