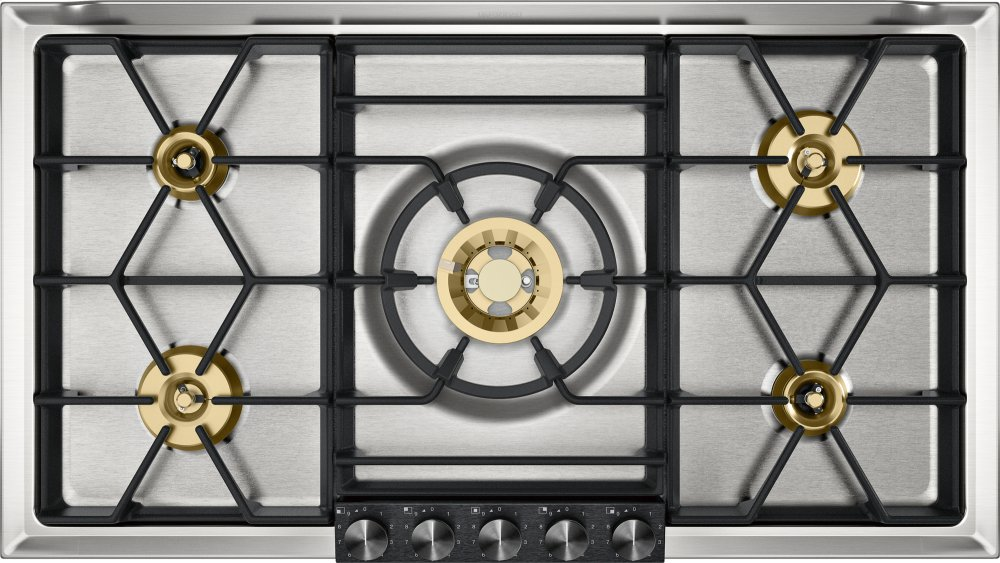

Gaggenau VG295120CA200 Series Gas Cooktop Width 36" (90 Cm) Up To 58,000 Btu (17 Kw) On 5 Burners: Liquid Propane
Gaggenau VG295120CA
No Reviews
Gas:Yes
Liquid Propane:Yes
Gaggenau VG295120CA Description
Cooking zones

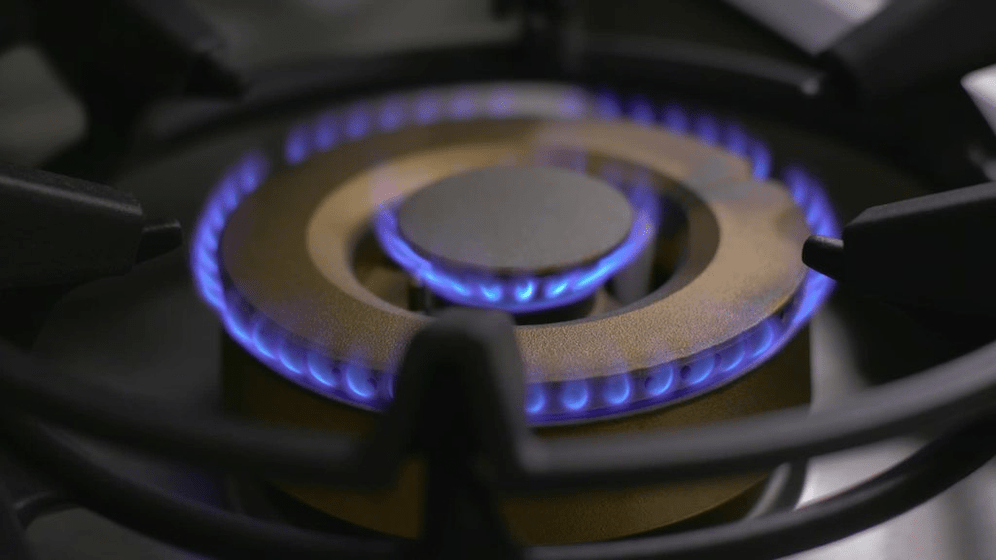

- 1 multi-ring wok burner 1,000 - 18,800 BTU (300 W - 5500 W), suitable for pots up to max. 12 5/8".
- 2 two-ring high output burners 600 - 13,600 BTU (170 W - 4000 W), suitable for pots up to max. 11".
- 2 two-ring standard burners 600 - 6,800 BTU (170 W - 2000 W), suitable for pots up to max. 9 1/2".

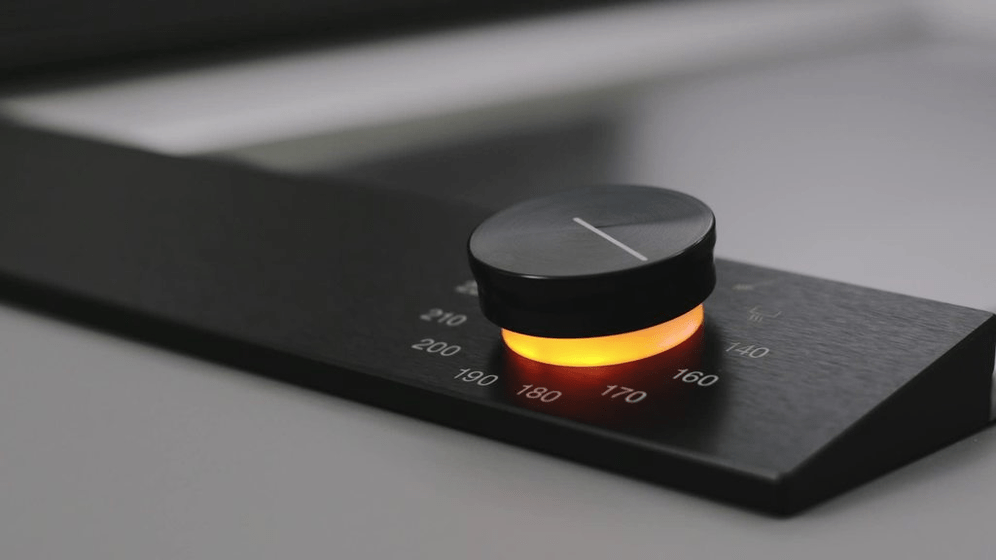

- Control knobs with illuminated ring.
- Integrated control panel.
- One-handed operation.
- Electric ignition.
- Three-part cast iron pan support with flat, continuous pot surface.
- Brass burner rings.
- Thermoelectric safety pilot.
- Residual heat indicator.
- Operation indicator.
- No intermediate shelf required.
- Appliance can be snapped into the countertop from above.
Appliance weight: approx. 68 lb. (30.8 kg). - The rear panel must consist of a non-flammable material. Wall trims must be resistant to heat.
- Installation in a 36" (90 cm) wide base cabinet is required.
- Above countertop minimum clearance of at least 11 13/16" from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation must be installed.
- Minimum distance between gas cooktop(s) with more than 37,533 BTU (11kW) and ventilation hood must be 27 1/2" (70cm).
- Appliance weight: approx. 68 lbs (29 kg).
- Total rating: 59,700 BTU (17.5 kW).
- Total rating 59,700 BTU. Total Amps: .1 A. 120 V / 60 Hz
- Connecting cable 59" with ground plug.
