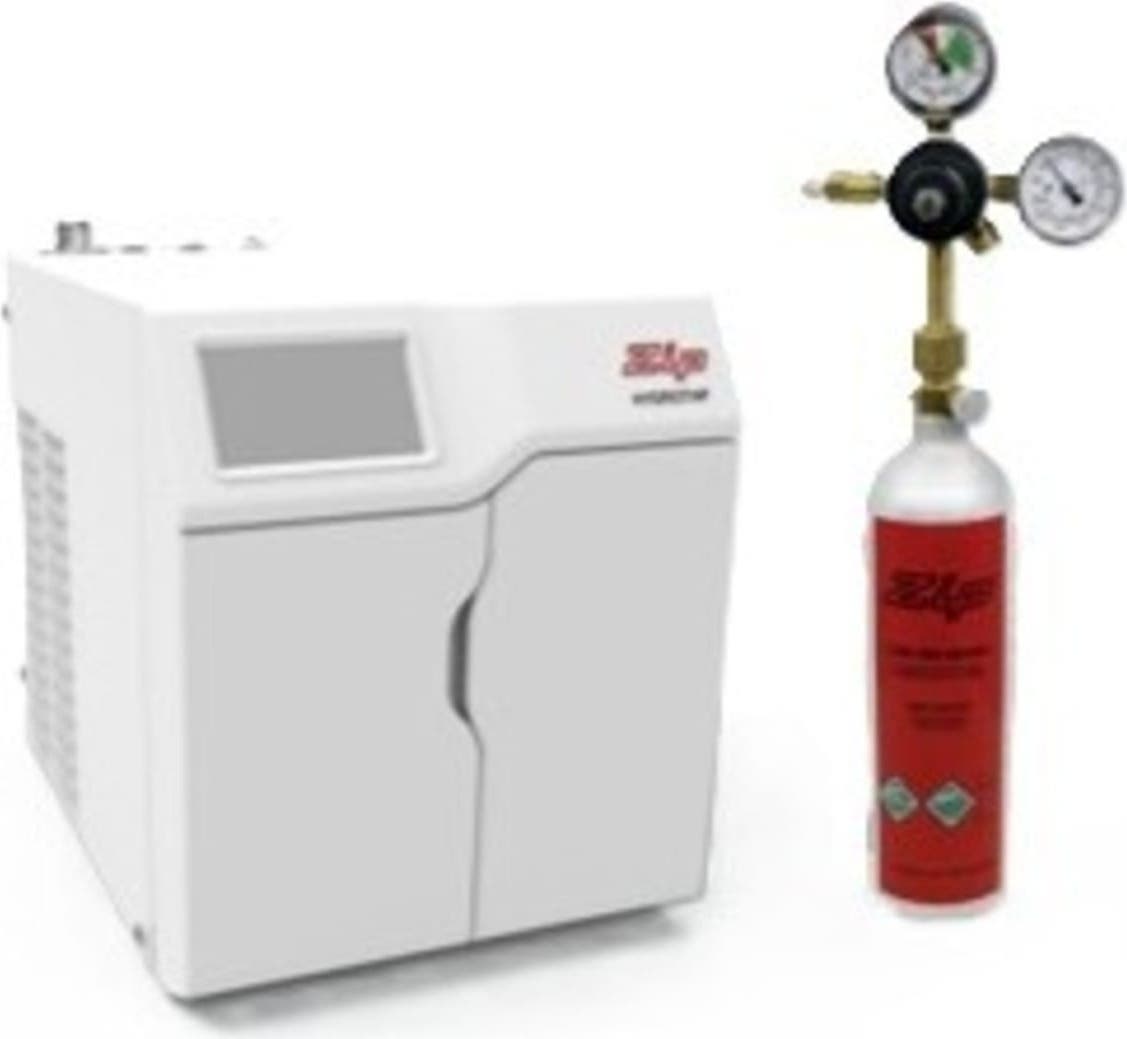

Zip Water 01048500HydroTap CS G5 Command Center with 1.5lb CO2 and CO2 Regulator
Zip Water 01048500
No Reviews
Regular Price:
$3,802.50
Summer Of Savings :
-$191.00
Today's Price :$3,611.00
Color:White
Depth (in):16
Height (in):13 1/10
Width (in):11
Regular Price:
$3,802.50
Summer Of Savings :
-$191.00
Today's Price :$3,611.00
Zip Water 01048500 Features
Water Pressure
Min 37psi – Max 100psi (2.60 - 7.03kg/cm2 ) with a minimum flow rate of 1 gpm (3.79 lpm)
Water Connection
½” BSP - isolation valve is required within 3’ (0.9m) of the installation
Integral Water Values
All HydroTap systems are fitted with a Dual Check Valve and a 50psi (3.52kg/cm2)Pressure
Water Supply Requirements
Potable drinking water supply
Solids (tds) Range
TDS Min 50ppm – Max 150ppm
Integral Water Filter
0.2 micron, 1 size - replace every 1,100 gallons / 4,163 liters or 12 months
Power Rating
110-120V, 50-60Hz, 15 amp power supply with a NEMA 5-15 outlet
Minimum Air Gap
Minimum of 2” / 50mm clearance on left and right side and 8” / 200mm above
Minimum Cabinet Size
18” wide x 15” deep / 457.2mm wide x 381mm deep
Connection Length
3’ / 0.9m (tap to command center)
Minimum Distance Needed For Installation
15”
Dry Weight
66lbs
Product Approvals
IAPMO - NSF/ANSI 372, 42, 53, CSA B483.1, ASSE 1087; cUL; CEC
Included Co2 Cylinder
Zip Water 1.5lb CO2 with CGA-320 fitting and CO2 regulator
Co2 Operating Pressure
Min 39psi - Max 44psi / Min 2.74 - Max 3.09kg/cm2
